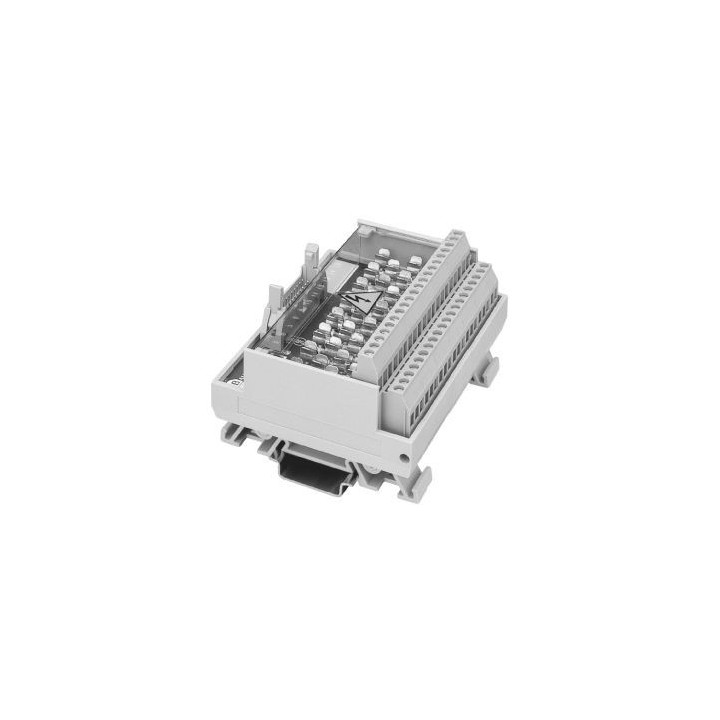

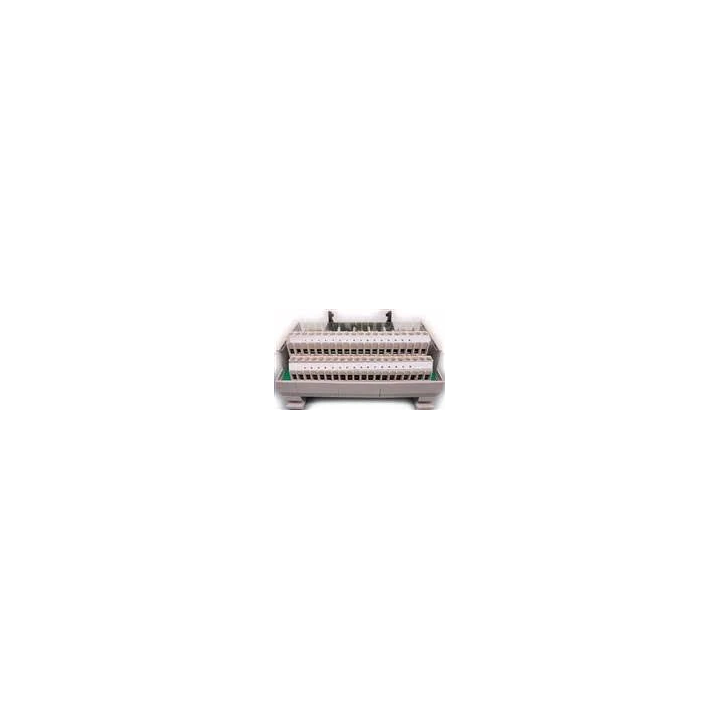

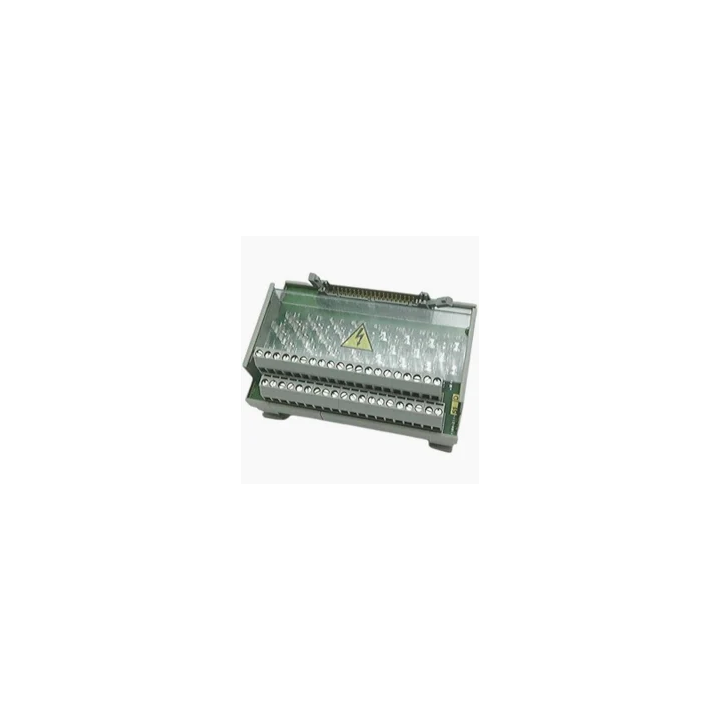

1492-IFM40F-FS-2 Ser A (PU)

Allen Bradley Bulletin 1492 | Digital Interface Module

Allen Bradley Bulletin 1492 | 40-Point Fusible Digital Interface Module (IFM), 5 x 20mm Fuse Clips, 24V AC/DC, Series A

The Allen-Bradley 1492-IFM40F-F24-2 is a 40-point fusible digital Interface Module (IFM) from the Bulletin 1492 I/O Wiring System, designed to reduce in-panel programmable controller wiring to discrete field devices by up to 75%. It features 5 x 20mm fuse clips for individual output circuit protection, 24V AC/DC blown fuse indicators for at-a-glance fault detection, and extra terminals for output wiring.

The module is rated for Class I, Division 2, Groups A, B, C, D hazardous locations with a T6 temperature code at a maximum ambient temperature of 60°C.

The 1492-IFM40F-F24-2 is DIN rail mountable for fast and secure installation in industrial control cabinets, measuring 92 mm (W) x 96 mm (H) x 58 mm (D) and weighing 0.35 kg. It is UL and CE certified.

The module mates with a pre-wired 1492-CABLE series cable on the I/O module side and provides organized, labeled field-side terminals for output devices, eliminating the need for point-to-point wiring between the PLC I/O module and individual field device terminal blocks.

Key Specifications:

  Type: Fusible Digital Interface Module (IFM)
  I/O Points: 40 Fuse Type: 5 x 20mm fuse clips
  Blown Fuse Indicators: Yes, 24V AC/DC
  Extra Terminals: For outputs
  Mounting: 35mm DIN rail
  Dimensions: 92 x 96 x 58 mm
  Weight: 0.35 kg
  Hazardous Location: Class I, Div. 2, Groups A–D, T6
  Platform: Bulletin 1492 Wiring System
  Series: A
