4100-CCS15F Ser B (PU)

Allen Bradley Bulletin 4100 | Servo Feedback Cable

Allen Bradley Bulletin 4100 | IMC-S Class Command Control Cable, 15-Foot Length, Series B

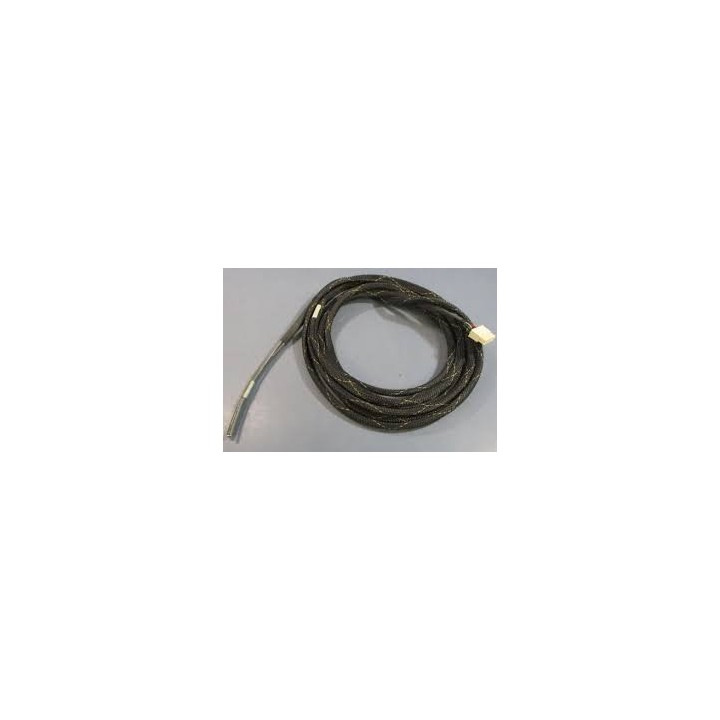

The Allen-Bradley 4100-CCS15F is a specialized command control cable engineered for the IMC-S Class (Series S Compact) motion controller platform. It serves as the primary signal interface between the motion controller and a servo drive, carrying critical command data such as velocity references and enable signals. It is a vital component in legacy high-performance motion systems where precise coordination of servo axes is required.

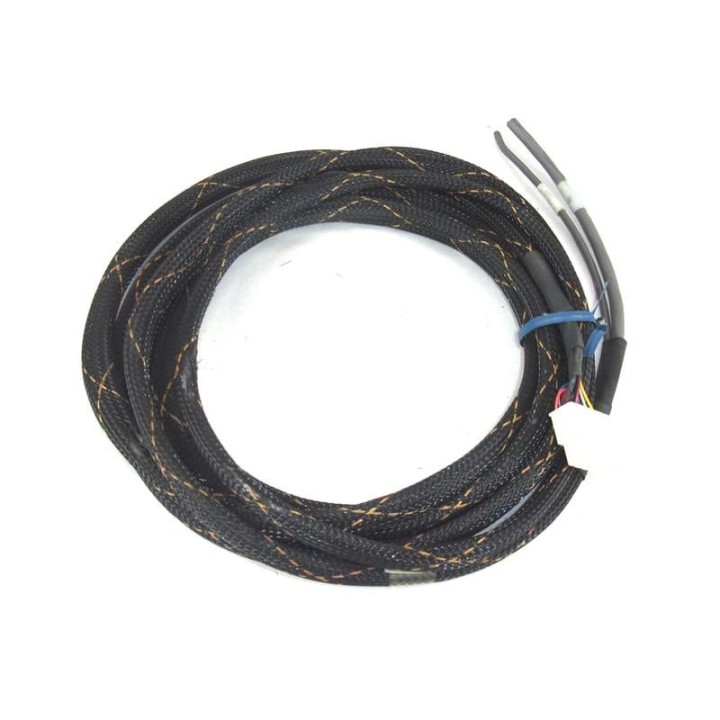

This Series B cable features a high-density rectangular connector (MDR style) on the controller end, specifically designed for a secure, keyed fit into the IMC-S Class output ports. The field end is terminated with color-coded flying leads, providing maximum versatility for wiring into a wide range of servo drives or interface boards. This design allowed engineers to integrate the IMC-S controller with various drive architectures by eliminating the need for a specific rive-end connector.

Constructed with high-flexibility, multi-conductor shielded wiring, the 4100-CCS15F is built to maintain signal integrity in the electrically noisy environments typical of multi-axis motion systems. The 15-foot (4.6 meter) length provides the reach necessary for routing through complex cable tracks and between nclosures. The molded strain relief on the rectangular connector protects the high-density terminations from mechanical stress and vibration during operational cycles.

Designed for the rigors of industrial motion control, the cable operates reliably within standard factory-floor temperature and humidity ranges. By using pre-terminated flying leads, it simplifies the commissioning of complex axis wiring and reduces the risk of signal cross-talk. The assembly meets UL and CSA standards, ensuring a certified and dependable command link for global industrial automation and precision machinery applications.

Key Specifications:

  - Function: IMC-S Controller Command Interface
  - Length: 15 Feet (4.6 Meters)
  - Controller Connector: High-Density Rectangular (IMC-S Compatible)
  - Drive End: Color-Coded Flying Leads
  - Cable Type: Command Control Shielded (CCS)
  - Platform: IMC-S Class / Series S Compact
  - Series: B
