1492-CABLE025M Ser A (PU)

Allen Bradley Bulletin 1492 | Pre-Wired Digital Cable

Pre-Wired for digital I/O modues 2.5 Meters (6.56 Feet)

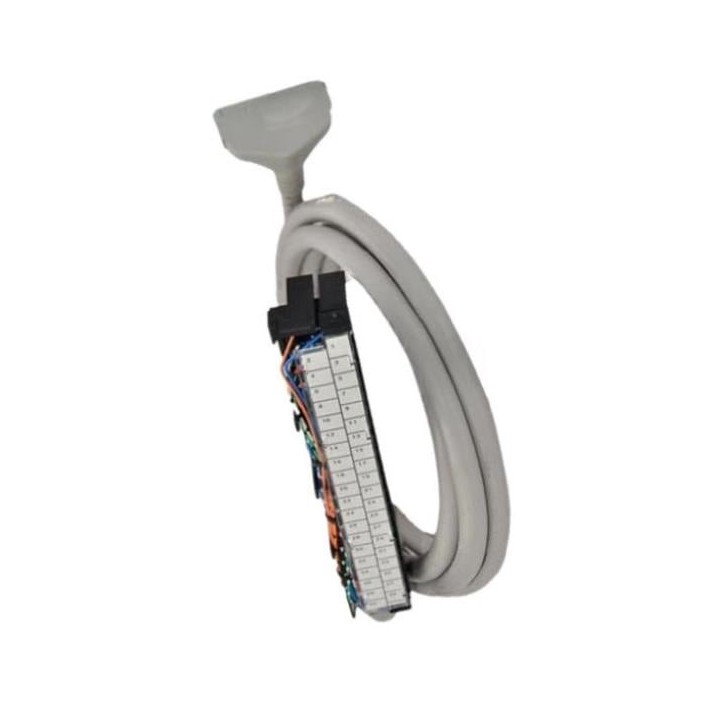

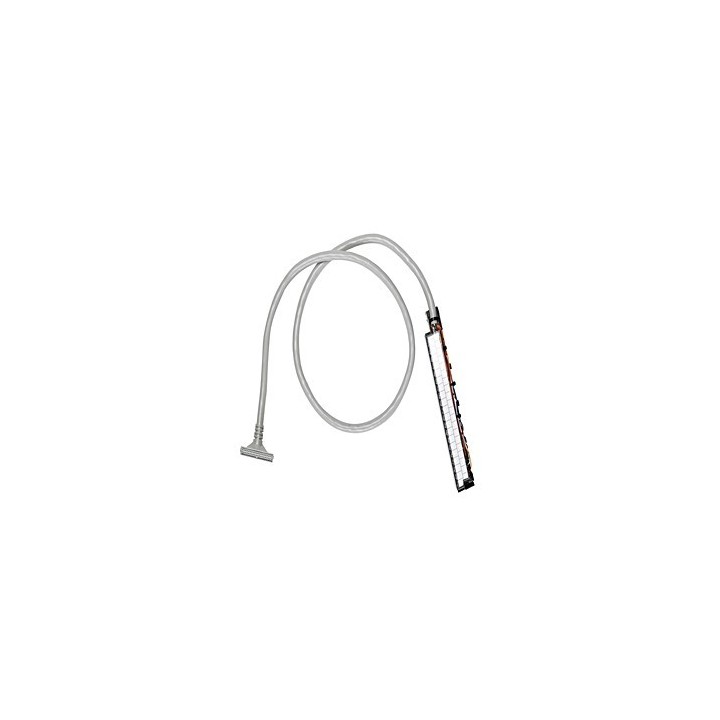

The Allen-Bradley 1492-CABLE025M is a specialized pre-wired I/O cable assembly designed specifically for the MicroLogix 1500 (1764) platform. It provides a robust, standardized connection between MicroLogix base units or expansion modules and 1492 digital Interface Modules (IFMs). This pre-terminated solution eliminates the need for manual, time-consuming point-to-point wiring, significantly reducing installation labor and the potential for cross-wiring errors.

This Series A cable features a pre-wired 1764-RTP Removable Terminal Block (RTB) on the controller end. It is engineered for a perfect fit into MicroLogix 1500 base units or high-density expansion I/O. The field end is equipped with a high-density 25-pin D-shell connector, designed to interface directly with 1492 wiring boards to streamline signal distribution to field-mounted devices like pushbuttons, sensors, and relays.

Constructed with 22 AWG multi-conductor shielded cable, the 1492-CABLE025M is built for high signal integrity and EMI protection in industrial environments. The 2.5-meter (8.2 feet) length offers flexibility for routing through wire ducts and around other components within a control cabinet. Both ends of the cable include molded strain relief to protect the terminations from vibration and mechanical fatigue.

Built for reliable performance in automated control systems, this assembly operates within the standard industrial temperature range of 0–60°C. It simplifies long-term maintenance by allowing for "plug-and-play" module swaps without disturbing the field wiring. The cable is manufactured to meet UL and CSA standards, providing a safe and compliant wiring interface for global machinery and industrial automation projects.

Key Specifications:

- Length: 2.5 Meters (8.2 Feet)
- Controller Connector: 1764-RTP (Pre-Wired RTB)
- Interface Connector: 25-Pin D-Shell
- Wire Gauge: 22 AWG (Shielded)
- Platform: MicroLogix 1500 (1764 Chassis)
- Series: A
