1492-CABLE025F Ser A (PU)

Allen Bradley Bulletin 1492 | Pre-Wired Digital Cable

Pre-Wired Discrete I/O Cable Pre-Wired for 1746-IB16, 1746-OB16, or 1746-IV16 16-Point Digital I/O modules, 25 multi-wire conductors, 22 Awg, Shielded, w/1746-RT25 Connector & IFM 25-Pin D-Shell Connector, Length 2.5 Meter (8.2 Feet)

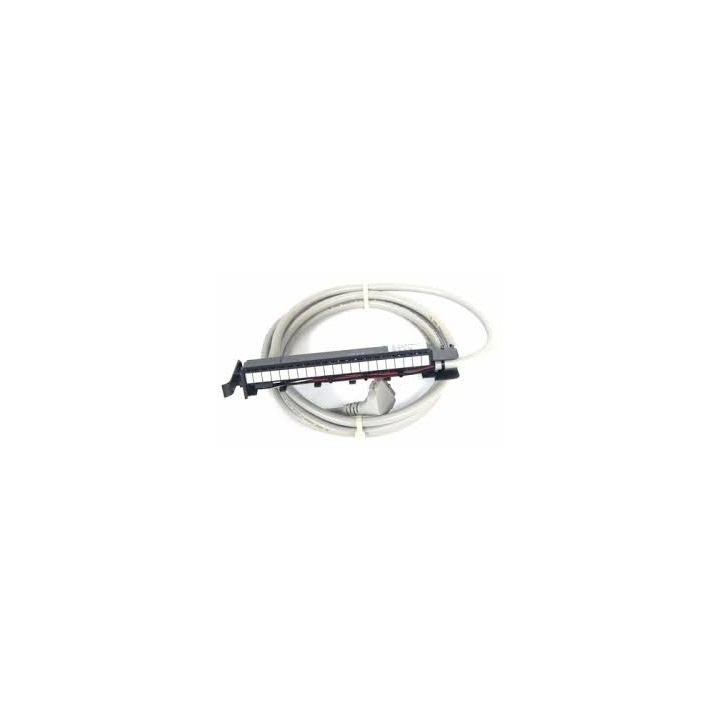

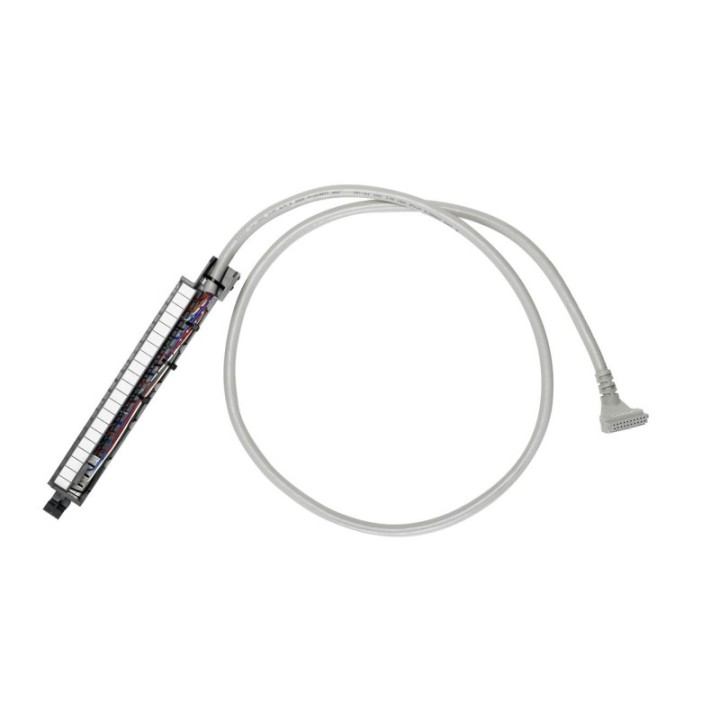

The Allen-Bradley 1492-CABLE025F is a high-integrity pre-wired cable assembly designed for the SLC 500 platform. It provides a seamless, standardized connection between 16-point 1746 digital I/O modules and 1492 Interface Modules (IFMs). By using a pre-wired solution, industrial automation professionals can significantly reduce wiring time, eliminate potential termination errors, and simplify the overall control cabinet layout.

This Series A cable features a pre-wired 1746-RT25 Removable Terminal Block (RTB) on the controller end, making it directly compatible with a wide range of 16-point SLC 500 modules, including the 1746-IB16, 1746-IV16, 1746-IA16, and 1746-OB16. The field end is terminated with a 25-pin D-shell connector, which snaps securely into 1492 digital IFMs to provide a centralized termination point for external field devices such as sensors, switches, and actuators.

Constructed with 22 AWG multi-conductor shielded wiring, the 1492-CABLE025F is built to maintain signal clarity in demanding industrial environments. The 2.5-meter (8.2 feet) length provides ample reach for flexible routing within large enclosures. The assembly includes heavy-duty molded strain relief at both the RTB and D-shell connections, protecting the internal wires
from mechanical stress and ensuring reliable performance under operational vibration.

Designed for continuous operation in process control and machinery automation, this cable assembly functions reliably across the standard industrial temperature range of 0–60°C. It facilitates efficient system maintenance by allowing for rapid module replacement without the need to disturb individual field wires. The cable is manufactured to meet UL and CSA
standards, providing a certified and safe wiring solution for global industrial applications.

Key Specifications:
- Length: 2.5 Meters (8.2 Feet)
- Controller Connector: 1746-RT25 (Pre-Wired RTB)
- Interface Connector: 25-Pin D-Shell
- Wire Gauge: 22 AWG (Shielded)
- Platform: SLC 500 (1746 Chassis)
- Series: A
