1492-CABLE010F Ser A (PU)

Allen Bradley Bulletin 1492 | Pre-Wired Discrete Cable

Pre-Wired cable for 1746 SLC 500 digital I/O modules, Cable Type F, 20 Conductor, #22 AWG, w/1746-TBCH Connector, 1.0 Meter (3.28 Feet)

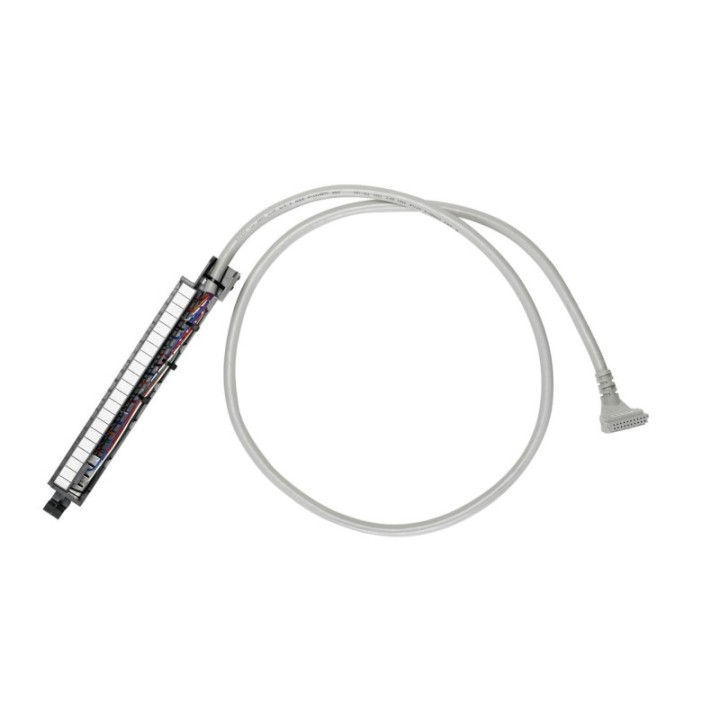

The Allen-Bradley 1492-CABLE010F is a Bulletin 1492 digital I/O module-ready pre-wired cable for use with 1746 SLC 500 digital I/O modules. The Type F designation indicates it is fitted with a 36-pin 1746-TBCH removable terminal block connector on the module end, making it compatible with SLC 500 I/O modules that use the TBCH-style removable terminal housing.

The Bulletin 1492 pre-wired cable system eliminates point-to-point field wiring directly at the I/O module, instead routing signals through a pre-tested, factory-assembled cable to a DIN rail-mountable Interface Module (IFM) or remote terminal block located in a more accessible area of the control panel. All Bulletin 1492 digital cables are 100% tested for continuity to ensure a perfect connection every time.

The "010" in the catalog number designates a cable length of 1.0 meter (3.28 ft), with the field end presenting individually color-coded conductors for straightforward identification and termination. Standard cable lengths available in the 1492-CABLE series are 1.0 m (010), 2.5 m (025), and 5.0 m (050), with build-to-order lengths also available.

This cable is part of the broader Bulletin 1492 In-Panel I/O Wiring System, which simplifies module replacement by allowing field wiring to remain undisturbed at the IFM while only the cable connector at the module is disconnected — significantly reducing maintenance time and the risk of wiring errors.

Key Specifications:

• Cable Type: Digital I/O module-ready (Type F)
• Module Connector: 36-pin 1746-TBCH removable terminal block
• Length: 1.0 meter (3.28 ft)
• Compatible Modules: 1746 SLC 500 digital I/O modules (TBCH connector style)
• Testing: 100% continuity tested
• Platform: SLC 500 (Bulletin 1746)
• Series: A
