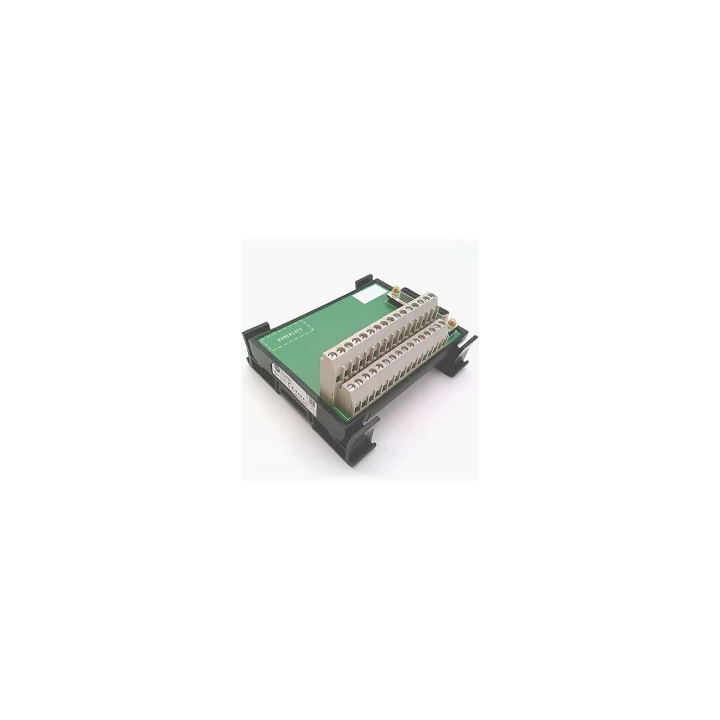

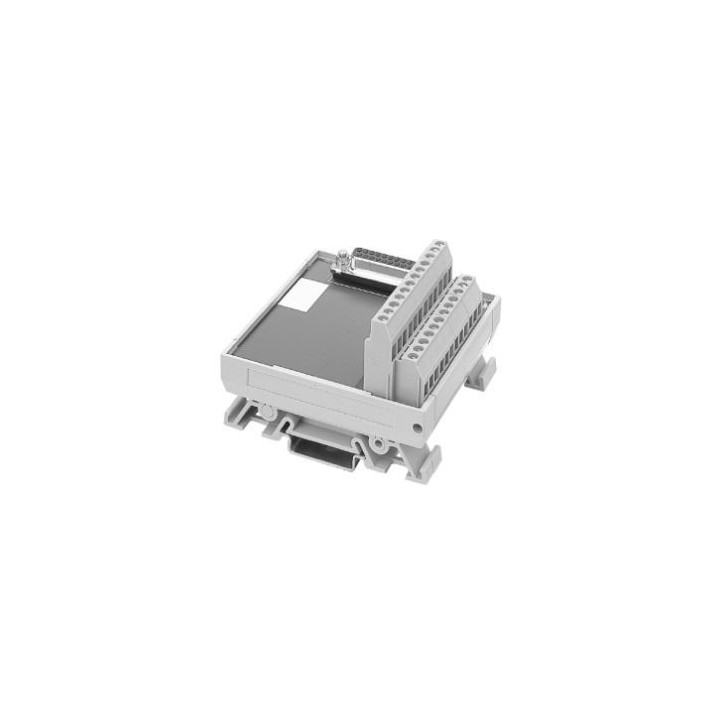

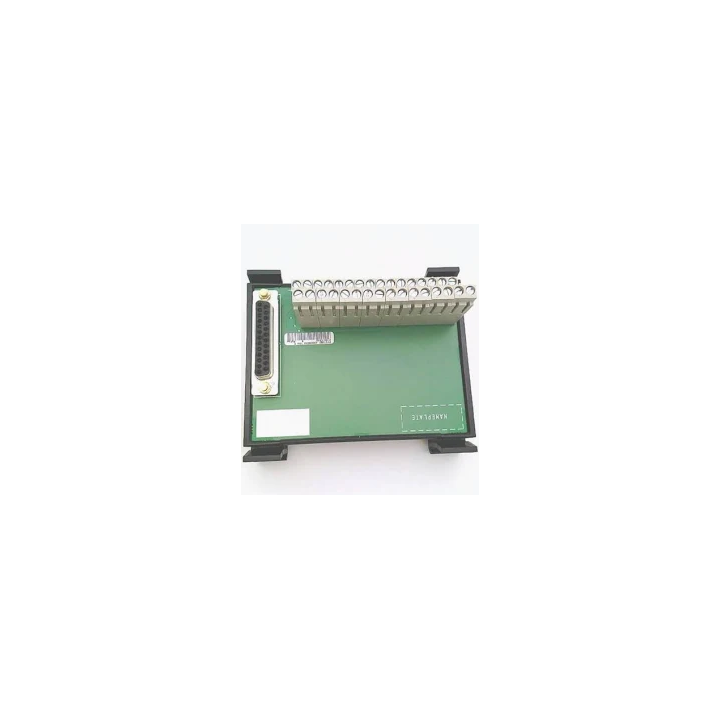

Allen Bradley Bulletin 1492 | Analog Field Wiring Module 8 or 16 channel input or output with 3 terminals per channel. These AIFMs enable you to fuse the input device power source on the field-side. The field-side power source is distributed through individual on-board 5 x 20 mm fuse clips.
Secure Checkout
256-bit encrypted SSL payments.
Fast Shipping
Expedited orders placed before 2 PM PST ship same-day.
30-Day Guarantee
All surplus controls tested and guaranteed.
8 or 16 channel input or output with 3 terminals per channel.
The 1492-AIFM8-3 has eight extra terminals commoned together in a power bus that can be used for Module Common connections or power supply connections. The extra terminals and internal jumpering eliminate the need for some terminal blocks for power connections and jumper accessories.
Eight field-side terminals are jumpered together on the AIFM. For some I/O modules, the terminals are also internally connected to module common through the pre-wired cable.
These AIFMs enable you to fuse the input device power source on the field-side. The field-side power source is distributed through individual on-board 5 x 20 mm fuse clips. The fused AIFMs have 24V DC blown fuse indicators to reduce the troubleshooting time needed to locate and replace a blown fuse. The fuse holder has an integrated fuse puller to simplify fuse removal. Isolation switch.
Requires a cable Cat. No. 1492-ACABLE***T to connect to the analog cards wiring arm
