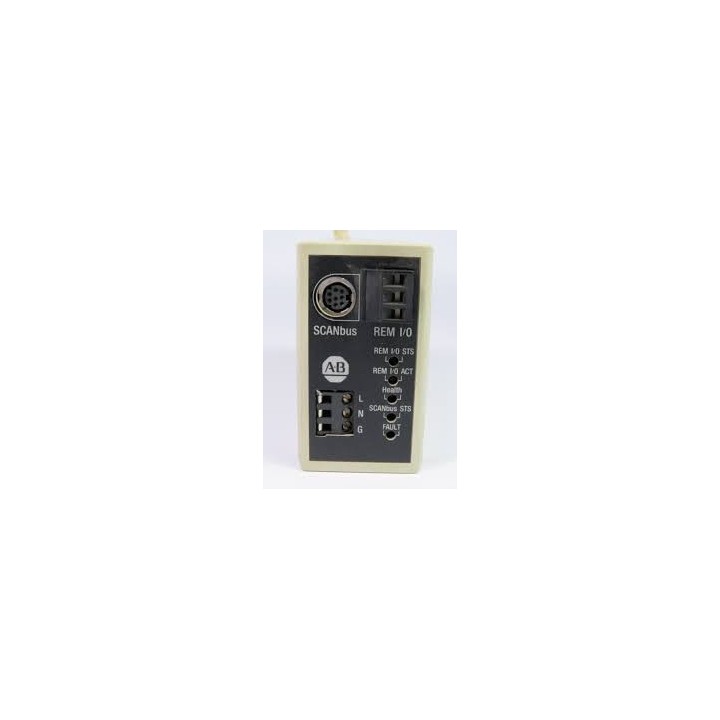

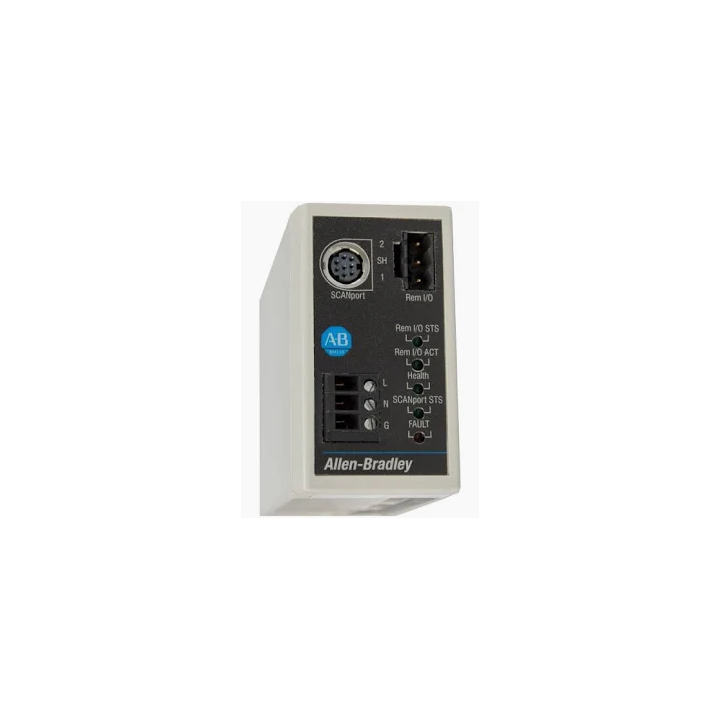

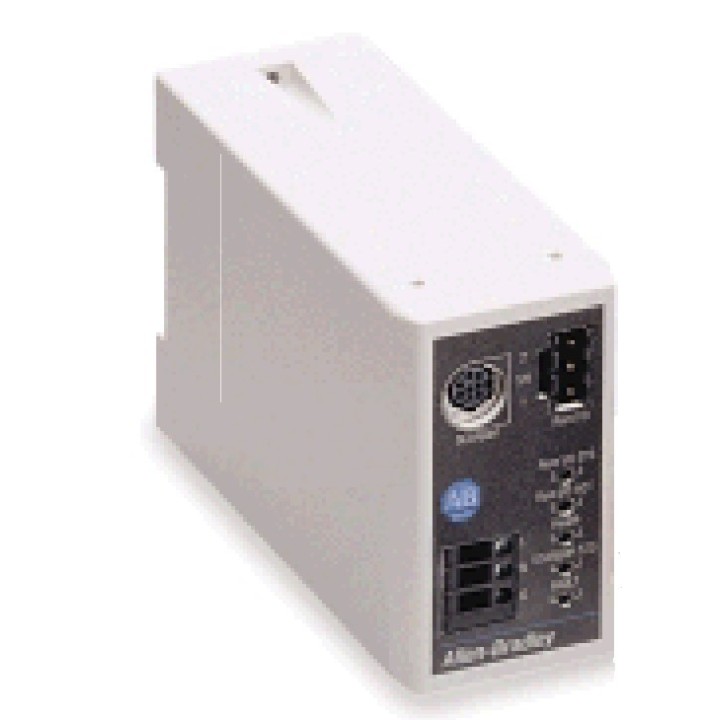

Allen Bradley Bulletin 1203 | RIO Comm Module The Bulletin 1203 Remote I/O communications module is an interface designed to provide a direct, digital link between an Allen-Bradley programmable controller and any one Allen-Bradley SCANport product.
Secure Checkout
256-bit encrypted SSL payments.
Fast Shipping
Expedited orders placed before 2 PM PST ship same-day.
30-Day Guarantee
All surplus controls tested and guaranteed.
SCANport PLC500..PLC5 Series
The Remote I/O communications module is an optional interface designed to provide a direct, digital link between an Allen-Bradley programmable controller and any one Allen-Bradley SCANport product. A module is required for each product that you want to connect to Remote I/O. There are three types of Remote I/O communications modules:
Catalog Number Enclosure Required Power Supply:
1203-GD1 NEMA Type 1 85 – 264V AC
1203-GK1 NEMA Type 1 24V DC +/- 10%
1336-GM1 Open Drive Supplied
The 1203-GD1 and 1203-GK1 modules mount on a DIN rail. They connect to a SCANport product using a SCANport cable and to the Remote I/O link using a Remote I/O cable. The 1336-GM1 board mounts directly onto selected SCANport products. It connects to a SCANport product using an internal SCANport connector and to the Remote I/O link using a Remote I/O cable.
Controllers
This Remote I/O communications module is compatible with many programmable controllers, including the following:
• Logix5550
• PLC-2/30® with SD2 (module version 1.02 or later)
• PLC-3®
• PLC Classic Family, including the PLC-5/10 (only with 1771-SN in Discrete Mode), PLC-5/15™, PLC-5/25™ family
• PLC Enhanced family, including the PLC-5/20™, PLC-5/30, PLC-5/40™, PLC-5/40L™, PLC-5/60™, PLC-5/60L™family, PLC-5/80™
• PLC-5/250™
• PLC scanner modules and subscanners
• SLC 500™ with 1747-SN scanner
