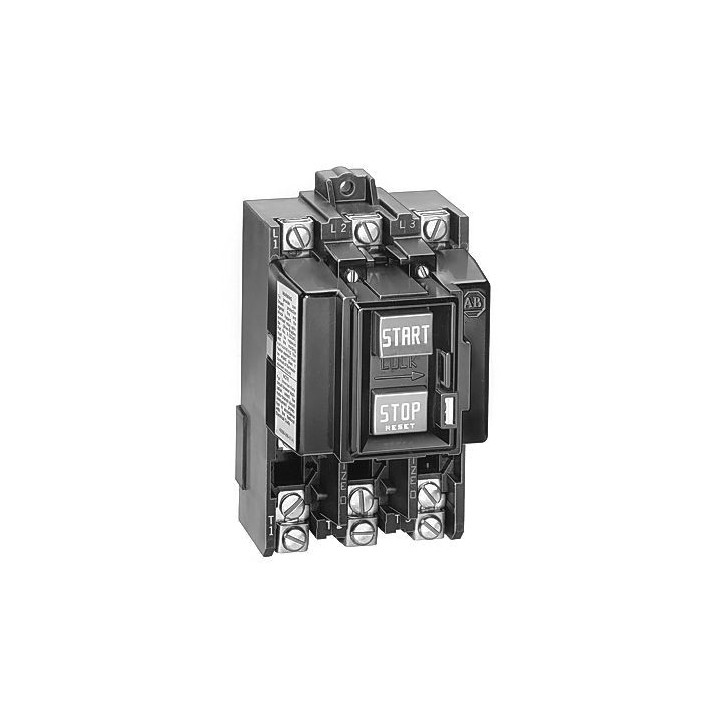

609-BOW Ser G (PU)

Allen Bradley Bulletin 609 | Push Button Manual Sarter

Manual Starting Switch, Push Button, 3 Phase, Series G, NEMA 1, Open Type Without Enclosure

7-1/2A @ 200Vac 50Hz, 7-1/2A @ 230Vac 60Hz, 10A @ 460..575Vac 60Hz, 10A @ 380..415Vac 50Hz

The 609-BOW Series G is an Allen-Bradley Bulletin 609 NEMA-rated full voltage non-reversing combination starter, part of the 609 series combination starter range. It combines a NEMA-rated motor starter with an integrated disconnect switch or circuit breaker in a single enclosed assembly, providing a complete and self-contained motor control solution that includes motor starting, overload protection, and disconnect capability in one unit. The BOW designation indicates a specific enclosure type, coil voltage, and overload relay configuration, and it is suited to panel or wall mounting in industrial environments. It is suited to pump, fan, conveyor, and general motor control applications across manufacturing, material handling, and process industries where a fully enclosed and self-contained motor control solution is required.

Bulletin 609 manual starting switches are designed for use on motor starting installations where remote push button control is not required and where undervoltage protection is not needed. The motor is started at full line voltage, and thermal type overload protection is provided.
