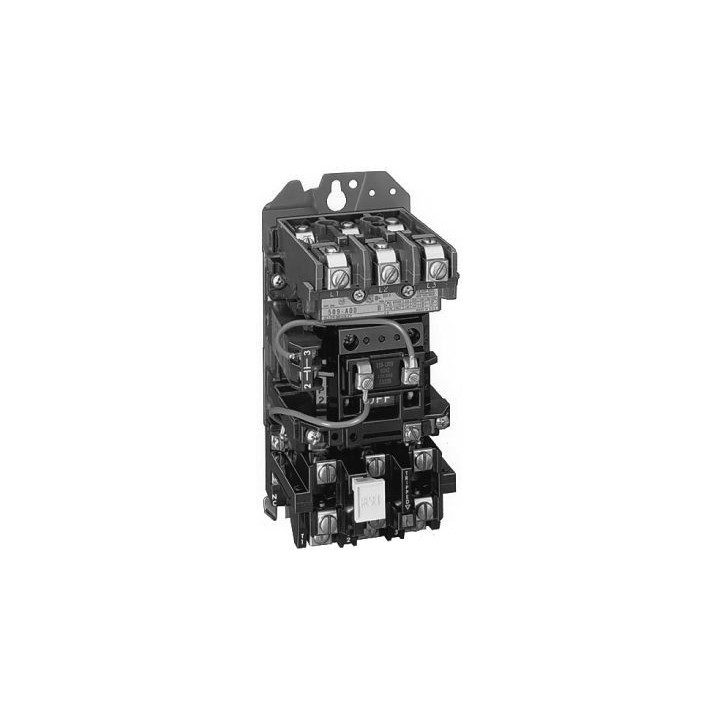

Allen Bradley Bulletin 509 | Non-Reversing Starter Full Voltage Non-Reversing Starter, NEMA Size 2, 115-120V 60Hz, Open Type without Enclosure with Eutectic Alloy Overload Relay

  Secure Checkout

256-bit encrypted SSL payments.

  Fast Shipping

Expedited orders placed before 2 PM PST ship same-day.

  30-Day Guarantee

All surplus controls tested and guaranteed.

Allen Bradley Bulletin 509 | Non-Reversing Open Type Full Voltage Starter

  • Feed-through construction
  • Starter can be field wired for single-or three-phase applications
  • NEMA sizes 0…4
  • Starter includes a 120V AC coil and (1) N.O. auxiliary contact, as standard
NEMA

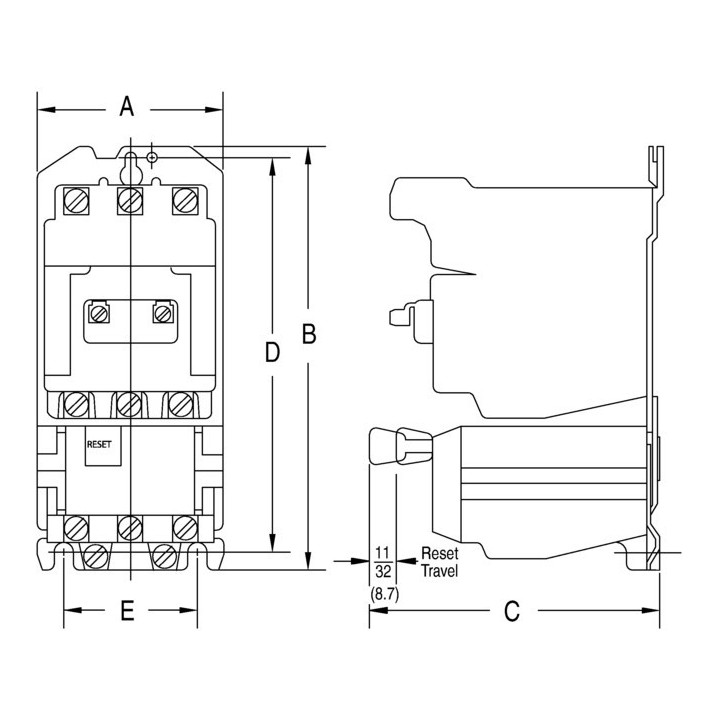

Size		 Dimensions in Inches (Millimeters) Approx. Shipping
Weight
[lb (kg)]
A
Width		 B
Height		 C
Relay Reset Depth		 D E
00 ⋆  ⋆  ⋆  ⋆  ⋆  0.9 (0.4)
0…1 3-9/16 (90.5) 7-5/8 (194) 4-1/2 (114) 7-3/32 (180) 2-3/4 (70) 4-1/4 (1.9)
2 3-15/16 (100) 9-5/32 (233) 4-1/2 (114) 8-21/32 (220) 3-5/32 (80) 5-3/4 (2.6)
3 6-11/64 (157) 12-29/64 (316) 6-1/16 (154) 8-21/32 (220) 5-33/64 (140) 15 (6.8)
4 7 (178) 14-21/32 (372) 7-13/16 (198) 9-27/32 (250) 6-5/16 (160) 23-1/5 (10.6)
5 7-3/8 (187) 16-7/6 (429) 8-17/32 (217) 14-32/32 (380) 6-5/16 (160) 35 (15.9)
6 13-1/4 (337) 25-3/32 (637) 11-7/16 (291) 17-23/32 (450) 11-13/16 (300) 160 (72)
7 16-1/2 (419) 30-27/32 (783) 12-9/32 (312) 18-5/16 (465) 15 (381) 247 (112)
8 21-1/2 (546) 39-1/2 (1003) 15-19/32 (396) 22-5/8 (575) 20 (508) 370 (168)
9 34 (864) 53-11/16 (1364) 28 (711) — — —
