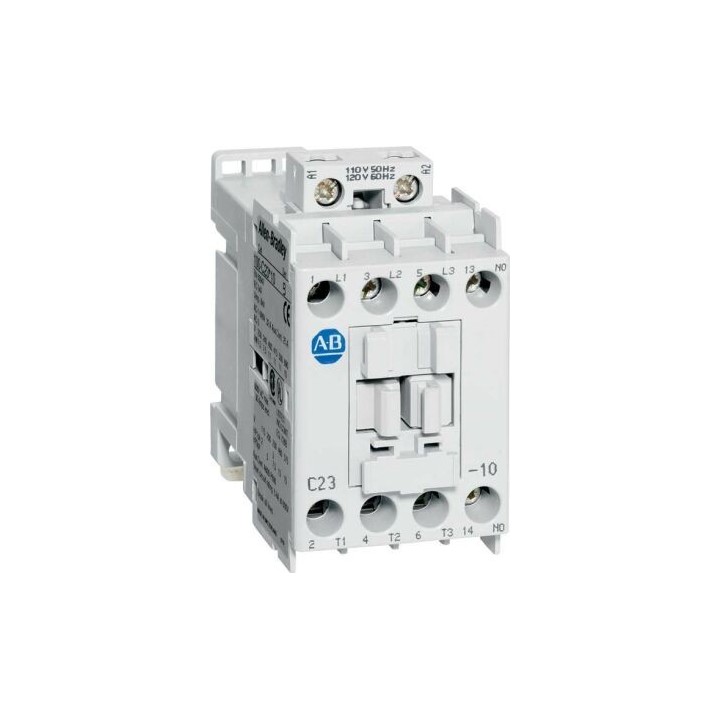

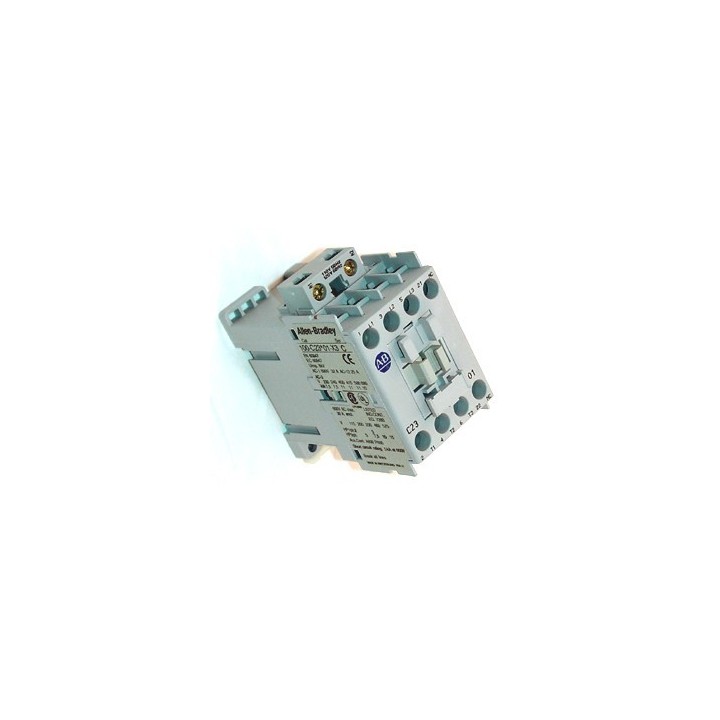

104-C23KJ22 Ser D (PU)

Allen Bradley Bulletin 104-C | Catalog 104 Reversing Contactor 24Vdc MCS-C Reversing Contactor 50/60Hz The Bulletin 100-C/104-C IEC contactor family, along with a wide range of common accessories and Bulletin 193 solid-state overload relays, provides the most compact and flexible starter component system available.

  Secure Checkout

256-bit encrypted SSL payments.

  Fast Shipping

Expedited orders placed before 2 PM PST ship same-day.

  30-Day Guarantee

All surplus controls tested and guaranteed.

Allen Bradley Bulletin 104-C | Catalog 104 23A IEC Reversing Contactor

Bulletin 100-C/104-C — IEC Contactors

  • Compact sizes from 4…55 kW/5…75 Hp (9…97 A)
  • AC and DC coil control
  • Common accessories for all contactor sizes
  • Front and side mounting of auxiliary contacts
  • Electronic and pneumatic timing modules
  • Space-saving coil-mounted control modules
  • Reversible coil terminations (line or load side)
  • All devices can be attached to 35 mm DIN mounting Rail
  • Environmentally friendly materials

AC Contactors and DC Contactors with 12V or 24V Electronic Coils

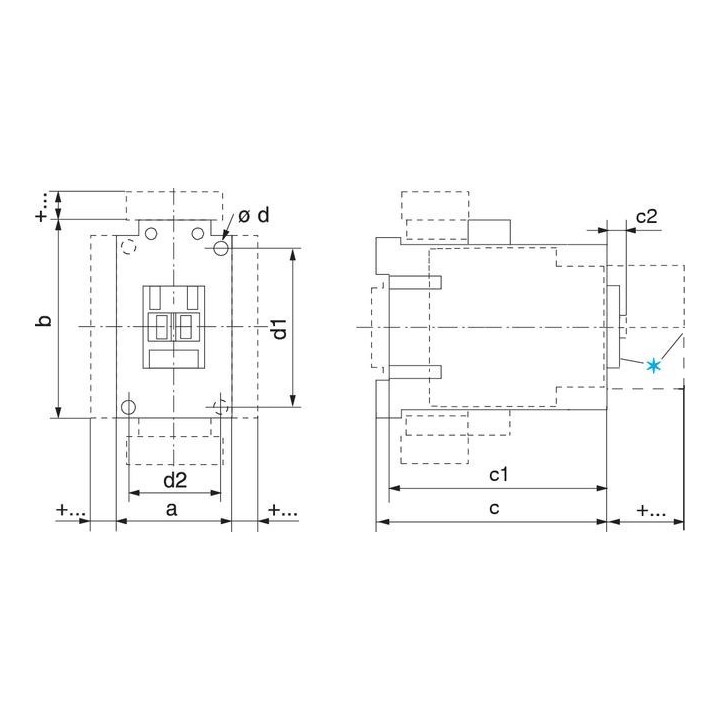

Cat. No. a b c c1 c2 Æd d1 d2
104-C09…104-C23 45 (1-25/32) 81 (3-3/16) 80.5 (3-11/64) 75.5 (2-31/32) 6 (15/64) 2 - 4.5 (2 -3/16) 60 (2-23/64) 35 (1-3/8)
104-C30, 104-C37 45 (1-25/32) 81 (3-3/16) 97.5 (4) 92.5 (3-41/64) 6.5 (1/4) 2 - 4.5 (2 -3/16) 60 (2-23/64) 35 (1-3/8)
104-C40 59 (2-21/64) 81 (3-3/16) 100.5 (3-61/64) 95.5 (3-49/64) 6.5 (1/4) 2 - 4.5 (2 -3/16) 60 (2-23/64) 45 (1-25/32)
104-C43, 104-C55 54 (2-1/8) 81 (3-3/16) 100.5 (3-61/64) 95.5 (3-49/64) 6.5 (1/4) 2 - 4.5 (2 -3/16) 60 (2-23/64) 45 (1-25/32)
104-C60…104-C97 72 (2-53/64) 122 (4-51/64) 117 (4-39/64) 111.5 (4-25/64) 8.5 (21/64) 4 - 5.4 (4 - 7/32) 100 (3-15/16) 55 (2-11/64)
104-C90 95 (3-47/64) 122 (4-51/64) 117 (4-39/64) 111.5 (4-25/64) 8.5 (21/64) 4 - 5.4 (4 - 7/32) 100 (3-15/16) 55 (2-11/64)
