1761-L16AWA Ser E (PU)

Allen Bradley Bulletin 1761 | MicroLogix Programmable Logic Controller

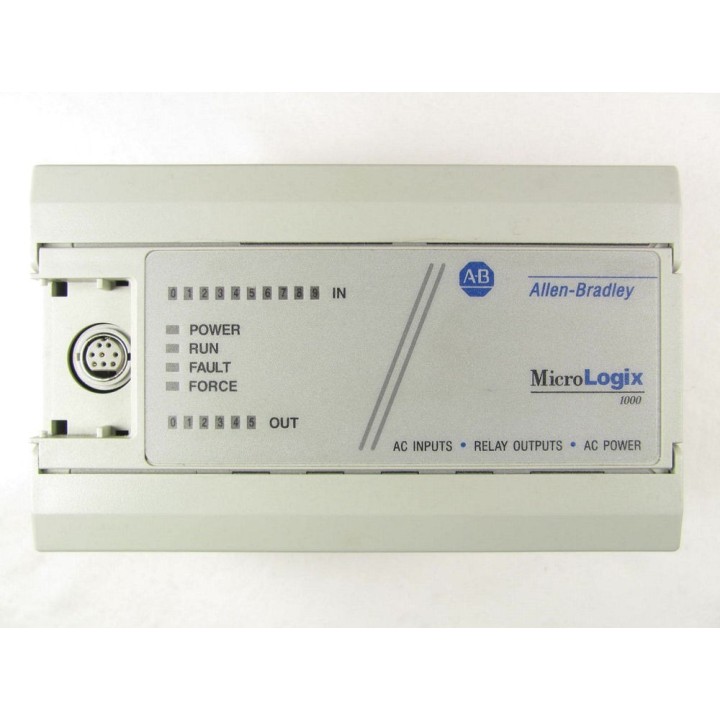

AB 1761-L16AWA Series E MicroLogix 1000 PLC

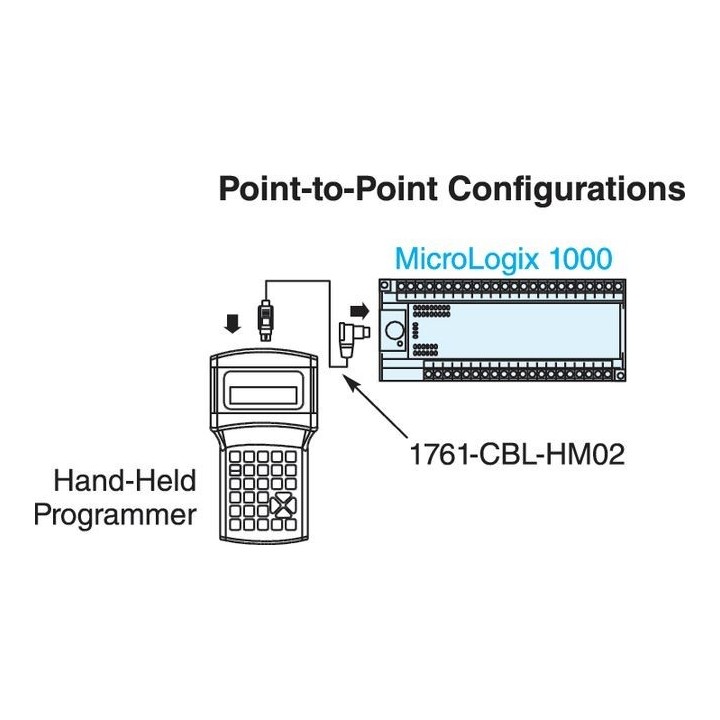

The 1761-L16AWA Series E is an Allen-Bradley MicroLogix 1000 family controller, part of the 1761 MicroLogix range. It is a compact fixed I/O brick-style controller providing 16 total I/O points, with 10 AC discrete inputs and 6 AC discrete outputs, accepting 120V AC input signals and switching 120V AC output loads, suited to small standalone machine control and simple automation tasks where a rack-based system is not required. It includes a built-in RS-232 communication port for programming and serial communication, and is programmed through RSLogix Micro or RSLogix 500.
