1492-IFM20F-F24-2 Ser A (PU)

Allen Bradley Bulletin 1492 | 20-Point Fusible Digital Interface Module (IFM), Series A

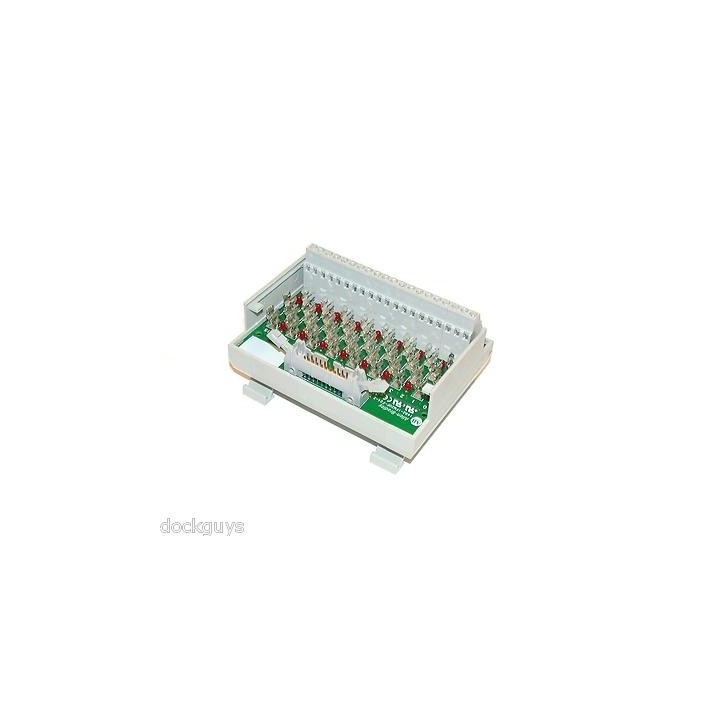

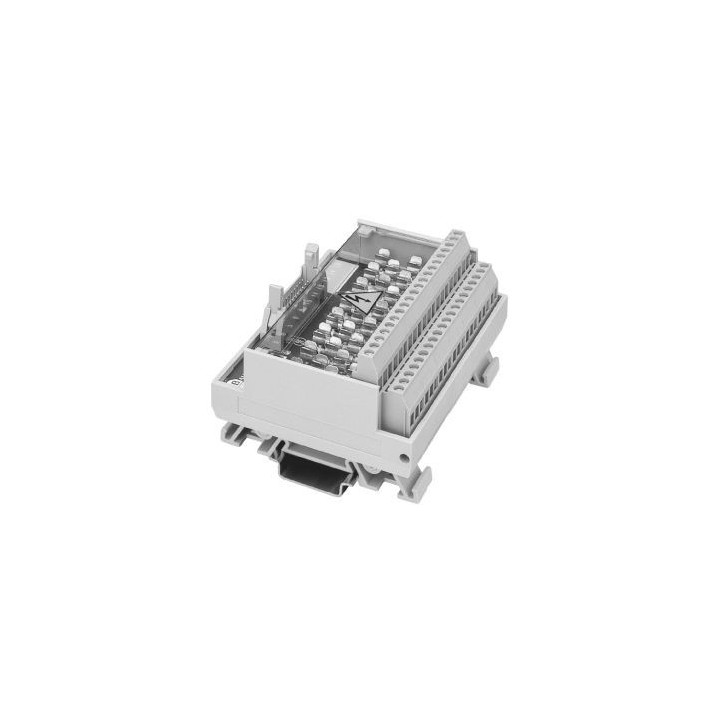

Allen Bradley 1492-IFM20F-F24-2 Series A Fusible Digital Interface Module (IFM), 24V AC/DC, Series A

The Allen-Bradley 1492-IFM20F-F24-2 is a 20-point fusible digital Interface Module (IFM) from the Bulletin 1492 I/O Wiring System, designed to reduce in-panel programmable controller wiring to discrete field devices by up to 75%. It features 5 x 20mm fuse clips for individual output circuit protection, 24V AC/DC blown fuse indicators for at-a-glance fault detection, and extra terminals for output wiring.

The module is rated for Class I, Division 2, Groups A, B, C, D hazardous locations with a T6 temperature code at a maximum ambient temperature of 60°C.

The 1492-IFM20F-F24-2 is DIN rail mountable for fast and secure installation in industrial control cabinets, measuring 92 mm (W) x 96 mm (H) x 58 mm (D) and weighing 0.35 kg. It is UL and CE certified.

The module mates with a pre-wired 1492-CABLE series cable on the I/O module side and provides organized, labeled field-side terminals for output devices, eliminating point-to-point wiring between the PLC I/O module and individual field device terminal blocks.

Key Specifications:

• Type: Fusible Digital Interface Module (IFM)
• I/O Points: 20
• Fuse Type: 5 x 20mm fuse clips
• Blown Fuse Indicators: Yes, 24V AC/DC
• Extra Terminals: For outputs
• Mounting: 35mm DIN rail
• Dimensions: 92 x 96 x 58 mm
• Weight: 0.35 kg
• Hazardous Location: Class I, Div. 2, Groups A–D, T6
• Platform: Bulletin 1492 Wiring System
• Series: A
