Allen Bradley Bulletin 1794 | DC Flex I/O Input Module

Allen Bradley Bulletin 1794 | 16-Point 24VDC Sinking Input Module, Voltage Range 10-31.2VDC, FLEX I/O Platform, Series A

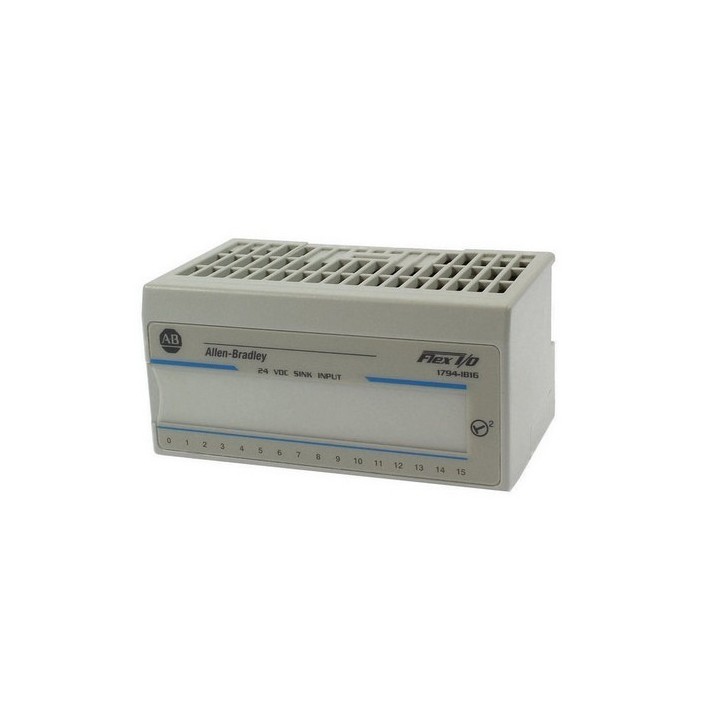

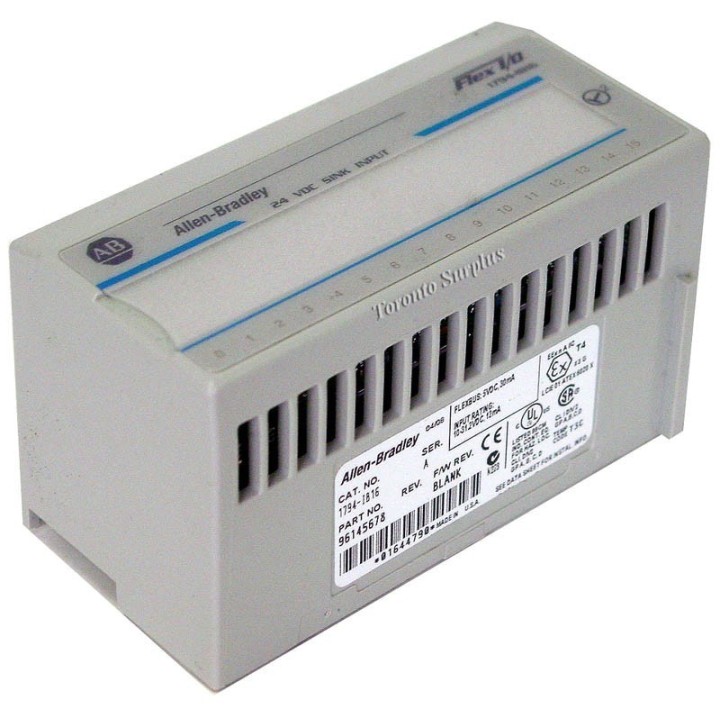

The Allen-Bradley 1794-IB16 is a high-density discrete DC input module designed for the FLEX I/O platform. Engineered for distributed control systems, this module provides a compact and modular interface between a controller and 24VDC field devices. Its small footprint and versatile mounting options make it an ideal olution for applications where cabinet space is limited and I/O needs to be placed close to the machinery.

This Series A module features 16 discrete sinking input channels rated at a nominal 24VDC. It operates over a wide voltage range of 10 to 31.2VDC, ensuring reliable signal detection even in systems with fluctuating power supplies. The module is designed to snap onto a required terminal base (such as the 1794-TB3 or 1794-TB3S), which provides the physical termination points for field wiring and the connection to the FLEX I/O backplane (FlexBus).

A standout feature of the 1794-IB16 is its support for "Removal and Insertion Under Power" (RIUP), allowing maintenance personnel to replace the module without disrupting the rest of the control system's operation. The front panel is equipped with 16 dedicated status LEDs that provide immediate visual feedback for each input channel, simplifying troubleshooting and system commissioning. It also includes integrated input filtering to minimize the effects of electrical noise.

Built for the rigors of industrial environments, the module operates reliably between 0–55°C (32–131°F) and draws a low 30mA of current from the FlexBus. It provides 100% continuous isolation between the field-side signals and the backplane logic, protecting the controller from potential electrical transients. The unit is UL listed, CSA certified, and CE compliant, meeting all global standards for safety and performance in industrial automation.

Key Specifications:

  - Inputs: 16 (Sinking)
  - Nominal Voltage: 24VDC (Range: 10–31.2VDC)
  - FlexBus Current: 30mA @ 5VDC
  - Signal Delay: 0.5ms OFF-to-ON / 0.5ms ON-to-OFF (plus filter)
  - Required Terminal Base: 1794-TB3, 1794-TB3S, 1794-TB2, etc.
  - Platform: FLEX I/O (1794)
  - Series: A
