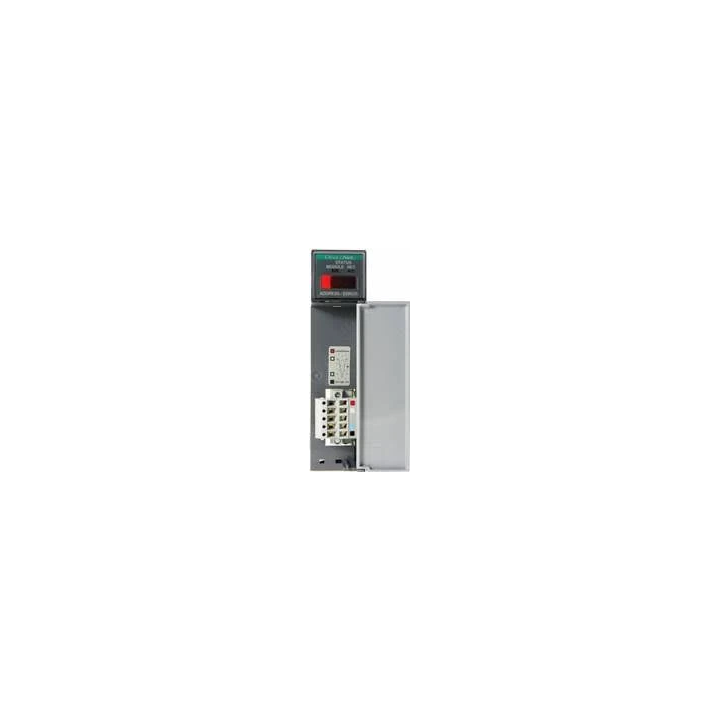

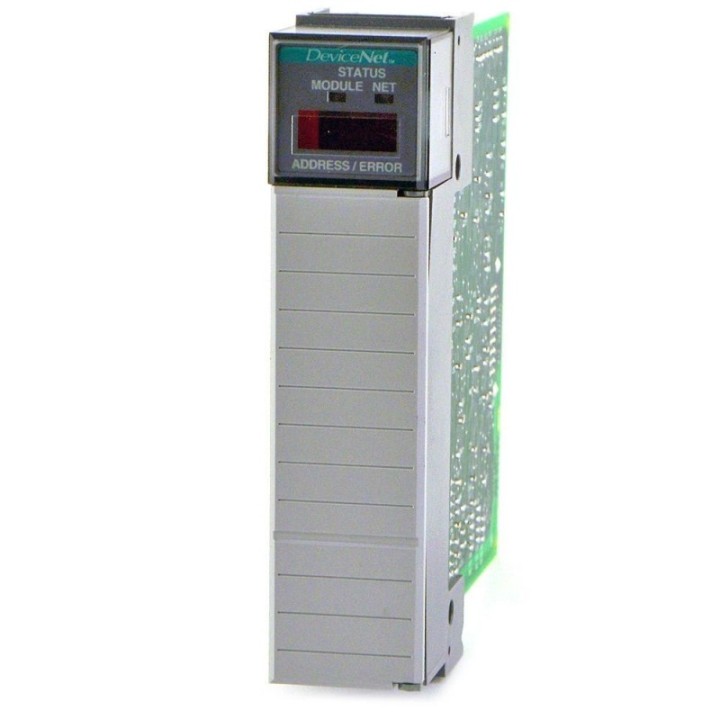

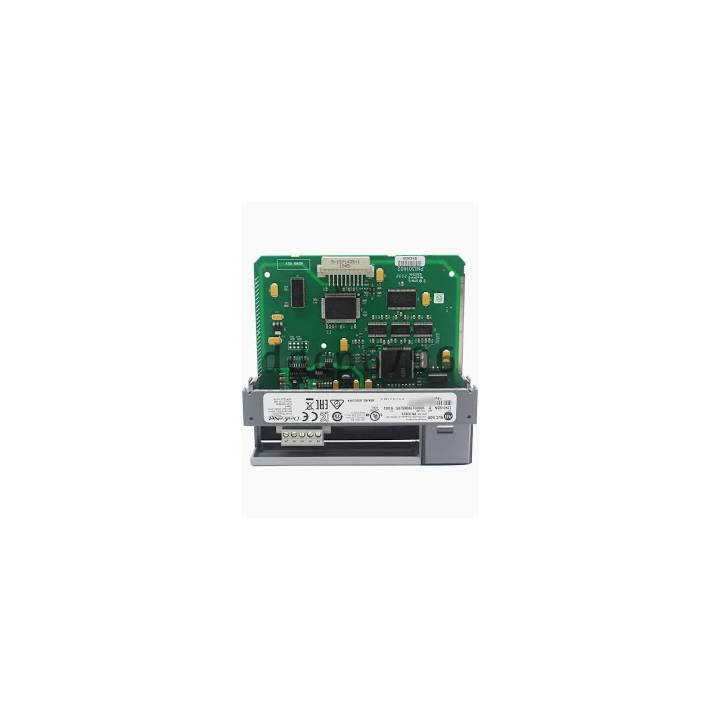

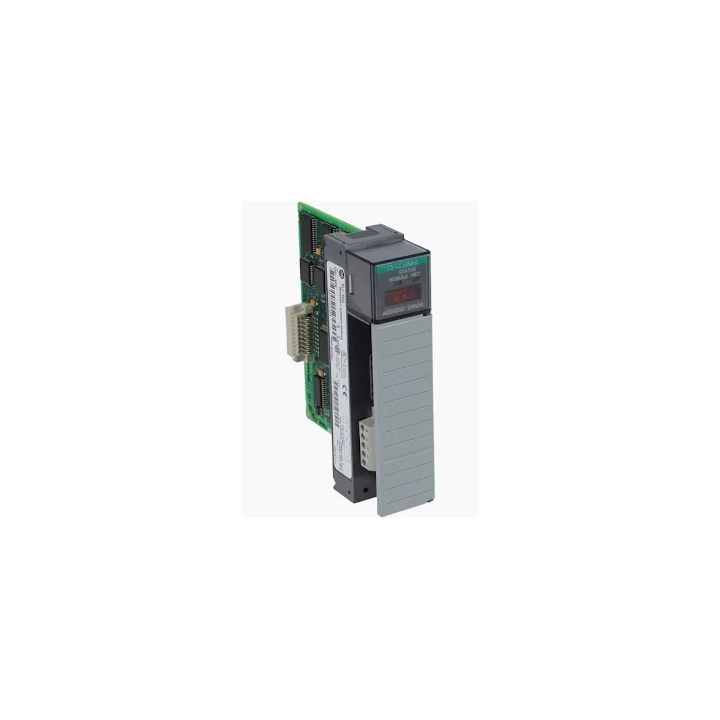

The Allen Bradley 1747-SDN Series A is a DeviceNet scanner module for the SLC 500 platform. It installs in the local SLC chassis and acts as the communication bridge between SLC logic and DeviceNet field networks.

This module is commonly used when an SLC system must exchange cyclic I/O and status data with DeviceNet nodes such as distributed I/O blocks, motor starters, and intelligent drives.

For retrofit and expansion projects, the 1747-SDN helps keep legacy SLC controllers in service while adding newer DeviceNet-connected devices at the machine level.

Key Specifications

• Brand: Allen Bradley
• Catalog Number: 1747-SDN Series A
• Platform: SLC 500
• Module Role: DeviceNet scanner / network interface
• Mounting: SLC chassis slot module
• Primary Function: Exchange I/O data between SLC processor and DeviceNet nodes

Application Context

Used in SLC 500 architectures where machine-level DeviceNet devices must be supervised by central PLC logic, including conveyor systems, packaging skids, and motor-control networks.

Buying Notes

Verify SLC processor compatibility, DeviceNet network design, node count, firmware expectations, and commissioning software workflow before purchase.
