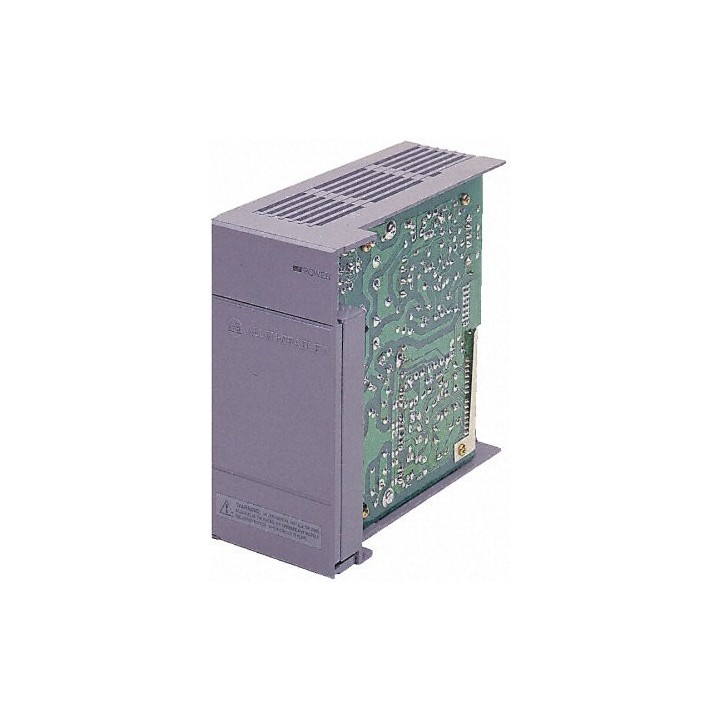

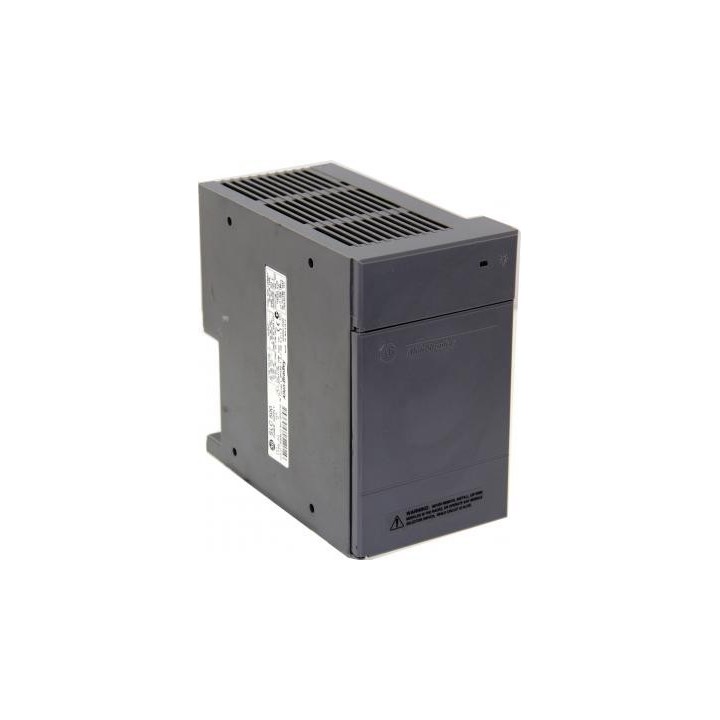

Allen Bradley SLC-500 Power Supply Allen Bradley SLC 500 Rack-Mount Power Supply, 120/240V AC Input (85–132V or 170–265V AC) Series C The Allen-Bradley 1746-P2 is a modular rack-mount power supply for the SLC 500 platform, accepting a wide-range AC input of 85–132VAC or 170–265VAC at 47–63Hz — making it suitable for both 120VAC and 240VAC installations using a jumper-selectable input voltage setting.

It installs in the left-most slot of any 1746 modular chassis and provides backplane power to all installed modules.

nternal current capacity is 5A at 5VDC and 0.96A at 24VDC, with a user-power output of 200mA at 24VDC for powering external devices.

Key Specifications

• Brand: Allen Bradley
• Catalog Number: 1746-P2 Series C
• Series: Series C
• Type: Industrial Automation Component
• Current Rating: 5A
• Voltage Rating: 5VDC
• Typical Use: Industrial automation and control applications
• Installation Benefit: Reduced wiring time and improved panel serviceability

Applications

Allen Bradley SLC 500 Rack-Mount Power Supply, 120/240V AC Input (85–132V or 170–265V AC), 47–63 Hz, 5A @ 5VDC / 0.96A @ 24VDC Internal Output, 200mA @ 24VDC User Power, 180 VA Typical, 20A Max Inrush, 1746-F2 Fuse, Series C

Buying Notes

Verify catalog reference, electrical ratings, connector or mounting requirements, and compatibility with your control system before purchase.
