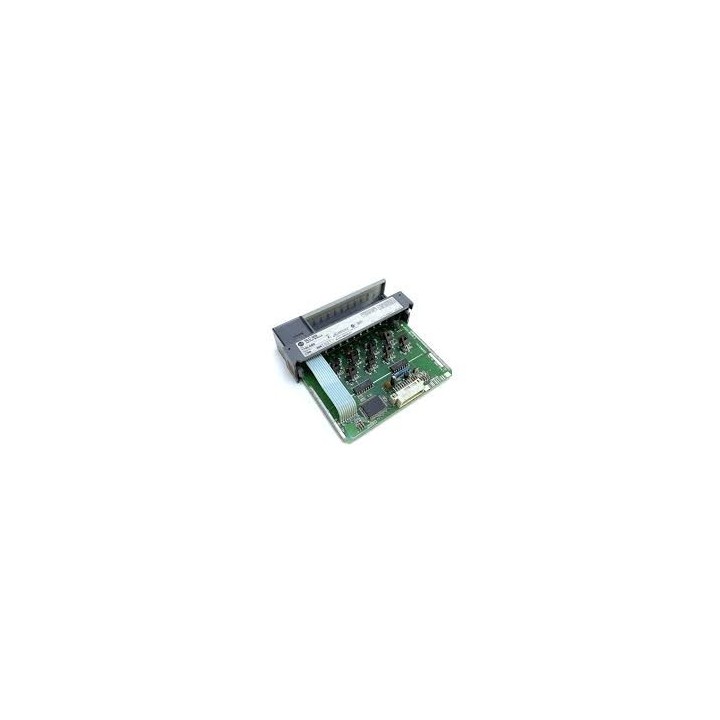

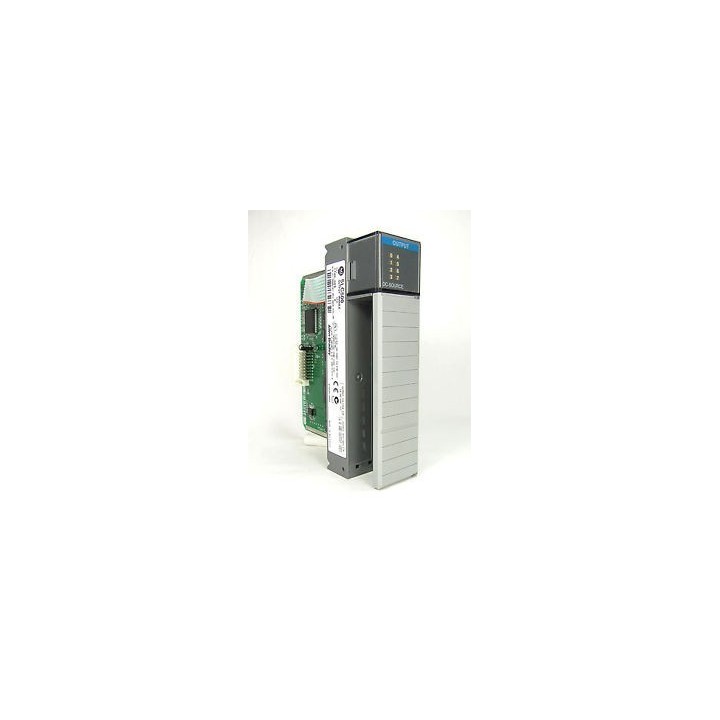

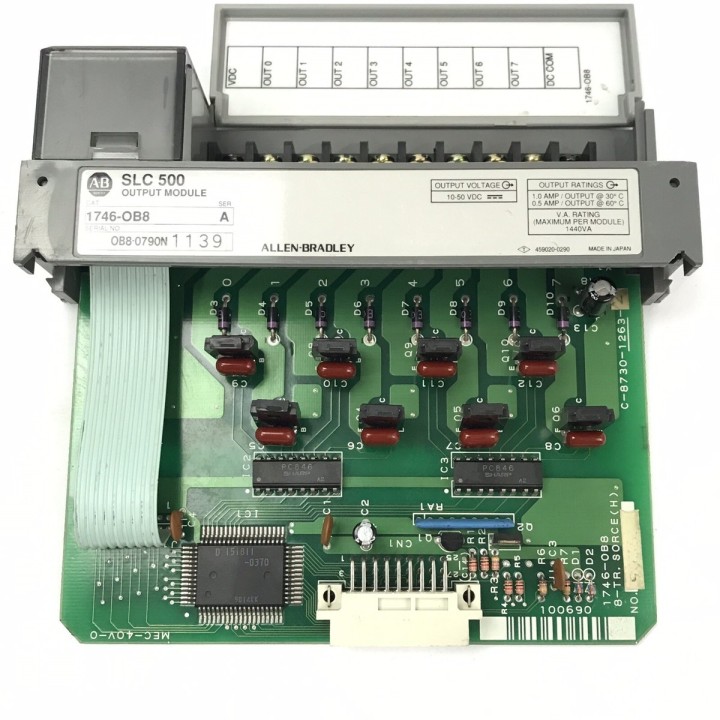

Allen Bradley 1746-OB8 Series A

Allen Bradley 1746-OB8 Series A

Allen Bradley DC Output Module 24Vdc, DC Current sourcing 8 Point output module The Allen-Bradley 1746-OB8 is an 8-channel sourcing DC output module from the SLC 500 product line, rated at a nominal 24VDC with an operating voltage range of 10–50VDC.

All 8 output points share a single common group, and the module draws 135mA of backplane current at 5VDC with no draw at 24VDC.

Signal delay under maximum resistive load is 1ms for both ON and OFF transitions, with a maximum off-state leakage current of 1mA and a minimum load current of 1mA.

Key Specifications

• Brand: Allen Bradley
• Catalog Number: 1746-OB8 Series A
• Series: Series A
• Type: Industrial Automation Component
• Current Rating: 0A
• Voltage Rating: 24Vdc
• Typical Use: Industrial automation and control applications
• Installation Benefit: Reduced wiring time and improved panel serviceability

Applications

Allen Bradley DC Output Module 24Vdc current sourcing 8 Point output module

Buying Notes

Verify catalog reference, electrical ratings, connector or mounting requirements, and compatibility with your control system before purchase.
